Some updates...
The ROV works! I am now working on making nice PCB boards so to make wiring and the charging of the battery less confusing.
So many things have been done and for sure I will forget to mention some stuff... I will post some pictures and try to say a few words.

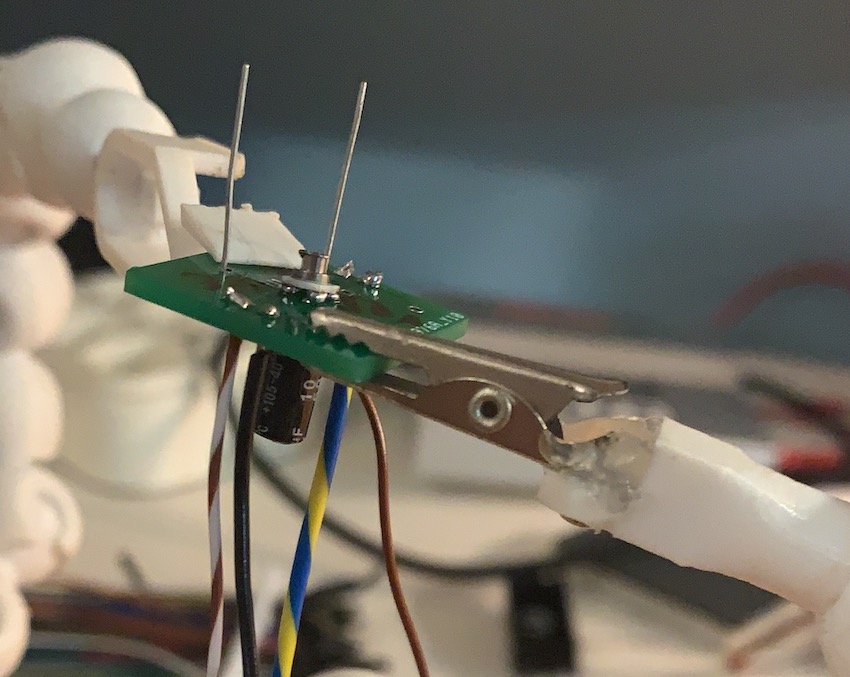

Here you can see the cad drawings for the pressure sensor. I made some tests and It gave me good values for pressure and for temperature. It stopped working after moving it. I used some very brittle copper wires and probably they broke off. Being it immersed in resin I couldnt repair it. I have another PCB ready with another sensor. This time I will use better wires.
This is a diagram showing how ROV comunication works in the SUB (comments are in Italian... but it should be simple to understand just by looking at the images)
- Untitled Diagram.png (55.17 KiB) Viewed 9572 times
Comunication and tests between two tenda mdules
- Copia di IMG_5691.jpg (377.95 KiB) Viewed 9572 times
Test of the ethernet ommunication and control
- Copia di IMG_5687.jpg (407.71 KiB) Viewed 9572 times

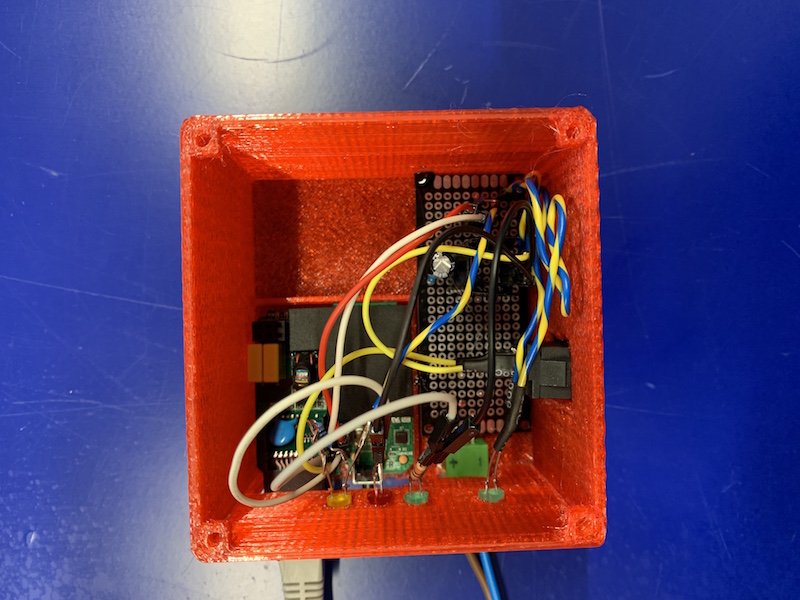

The powerline comunication was handled using two Tenda powerline ethernet modules that I repurposed.
- Copia di IMG_5677.jpg (185.48 KiB) Viewed 9572 times

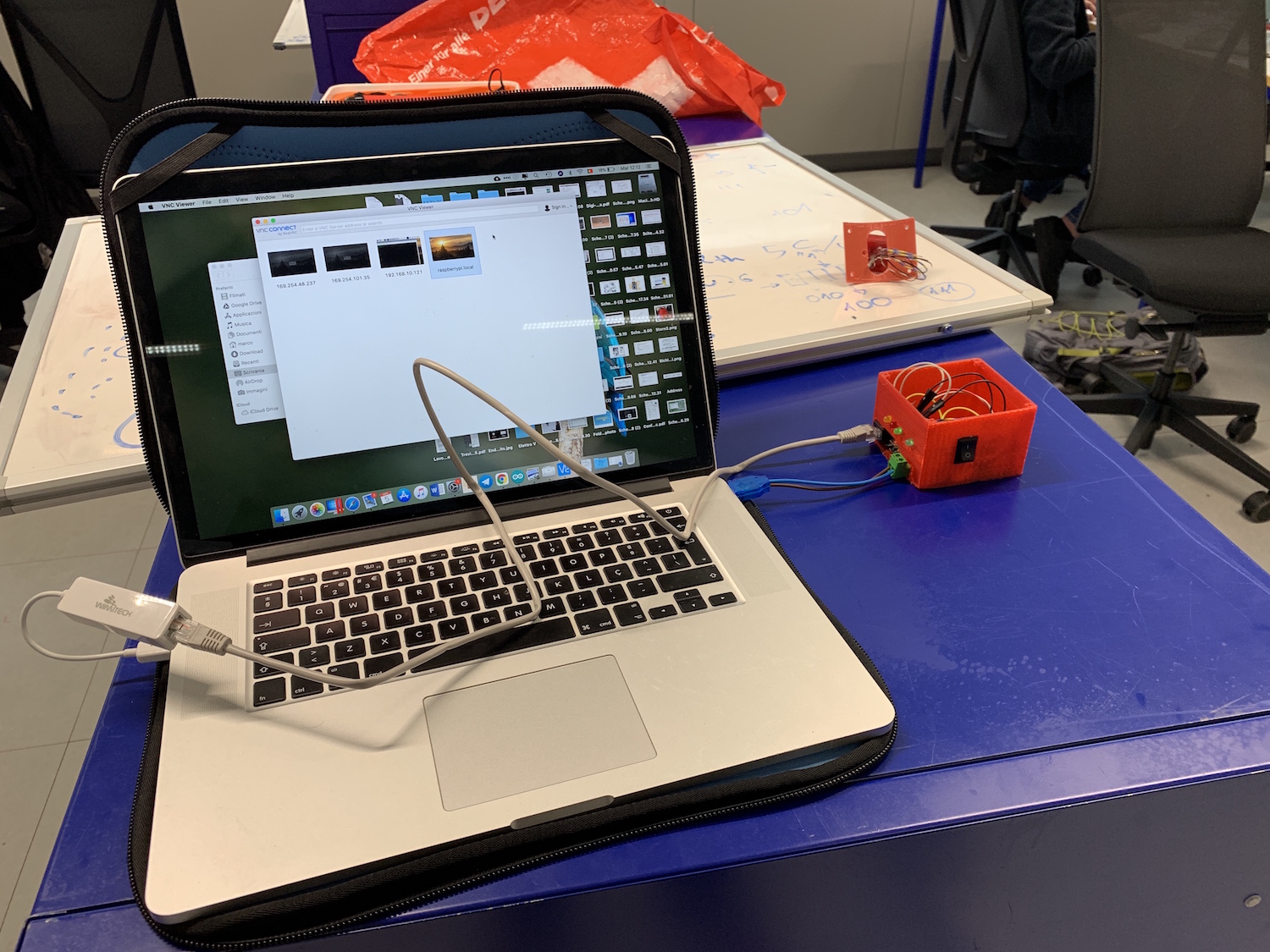

I decided to use VNCviewer for now to control the subamrine and view the USB camera.
- Copia di IMG_5674.jpg (611.7 KiB) Viewed 9572 times

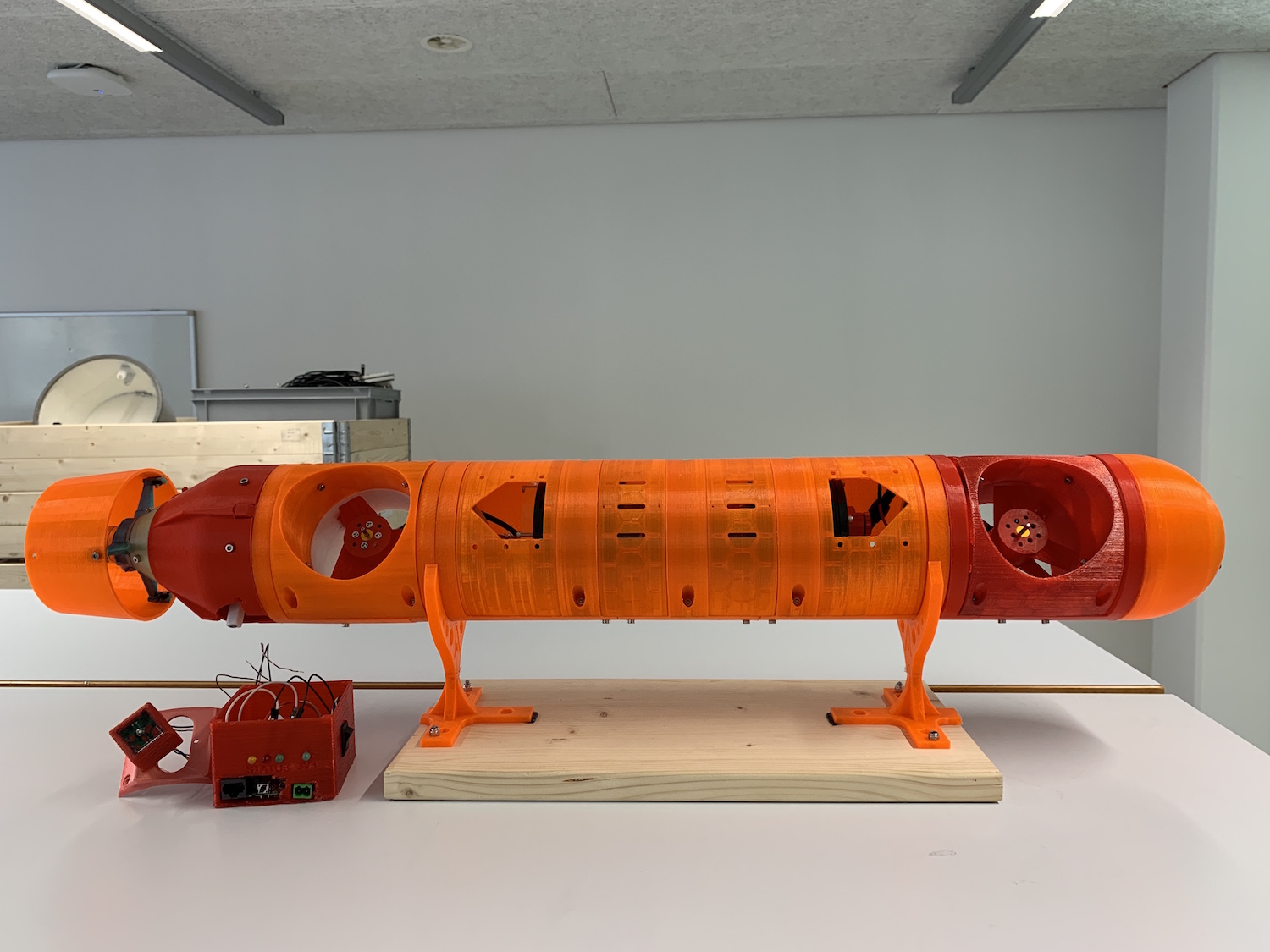

Final result
- Copia di IMG_5735 2.jpg (338.12 KiB) Viewed 9572 times
I will make some YouTube videos showing all the stuff that was done. For now I hope you enjoyed the update.
