I'm not going to lie these 3D printers are frigging amazing, I wish I had one 20 years ago.
![Camera Tube 08.jpg](./download/file.php?id=2433&sid=facafe339079ae93ce4160b20c954eeb)
- Camera Tube 08.jpg (700.08 KiB) Viewed 66121 times
I printed the base piece first to make sure the motor would fit and the base would fit well enough in the tube.
![Camera Tube 09.jpg](./download/file.php?id=2434&sid=facafe339079ae93ce4160b20c954eeb)
- Camera Tube 09.jpg (612.76 KiB) Viewed 66121 times

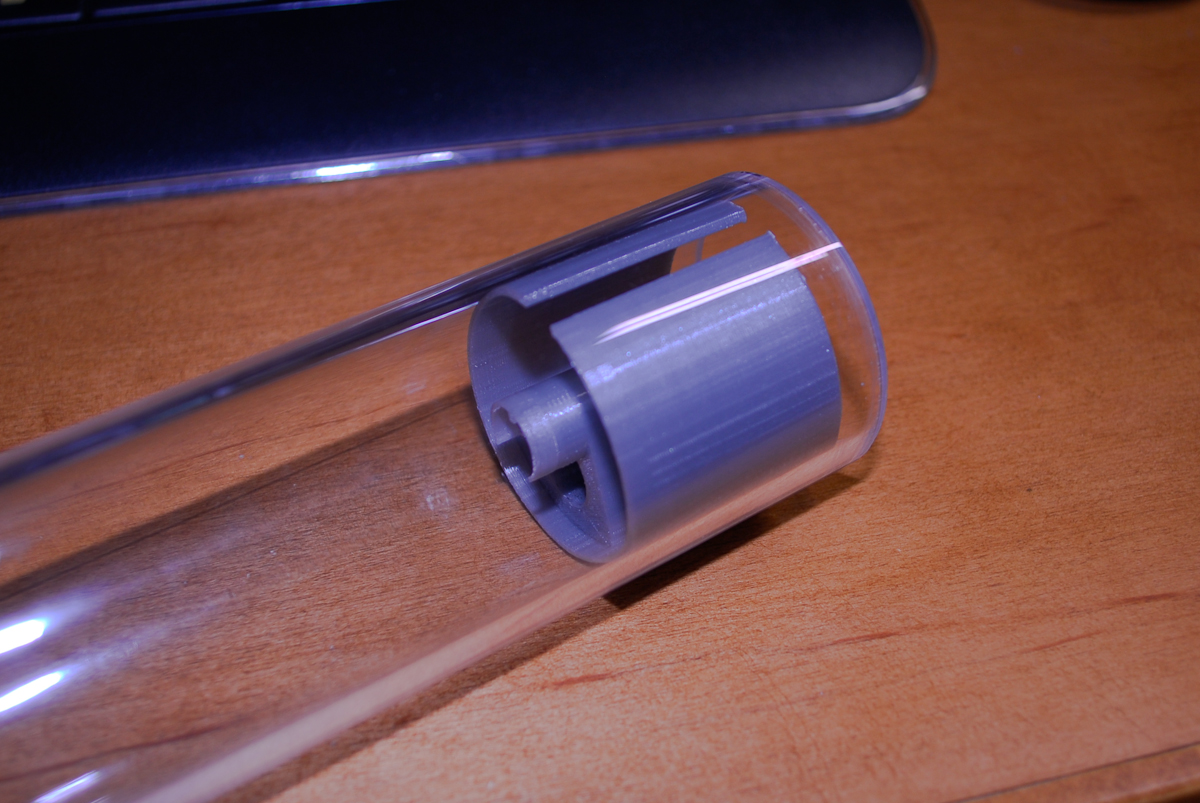

Everything fit pretty well so far and the spring action walls seem to hold the base in the tube well enough.
![Camera Tube 10.jpg](./download/file.php?id=2435&sid=facafe339079ae93ce4160b20c954eeb)
- Camera Tube 10.jpg (730.97 KiB) Viewed 66121 times
The rest of the piece where printed in one go. I printed the camera arm and pivot shaft in two separate pieces to make it easier to print and I will just glue it together later. I also printed an extra gear and e-clip just encase they needed a little fitting.
![Camera Tube 11.jpg](./download/file.php?id=2436&sid=facafe339079ae93ce4160b20c954eeb)
- Camera Tube 11.jpg (1001.72 KiB) Viewed 66121 times

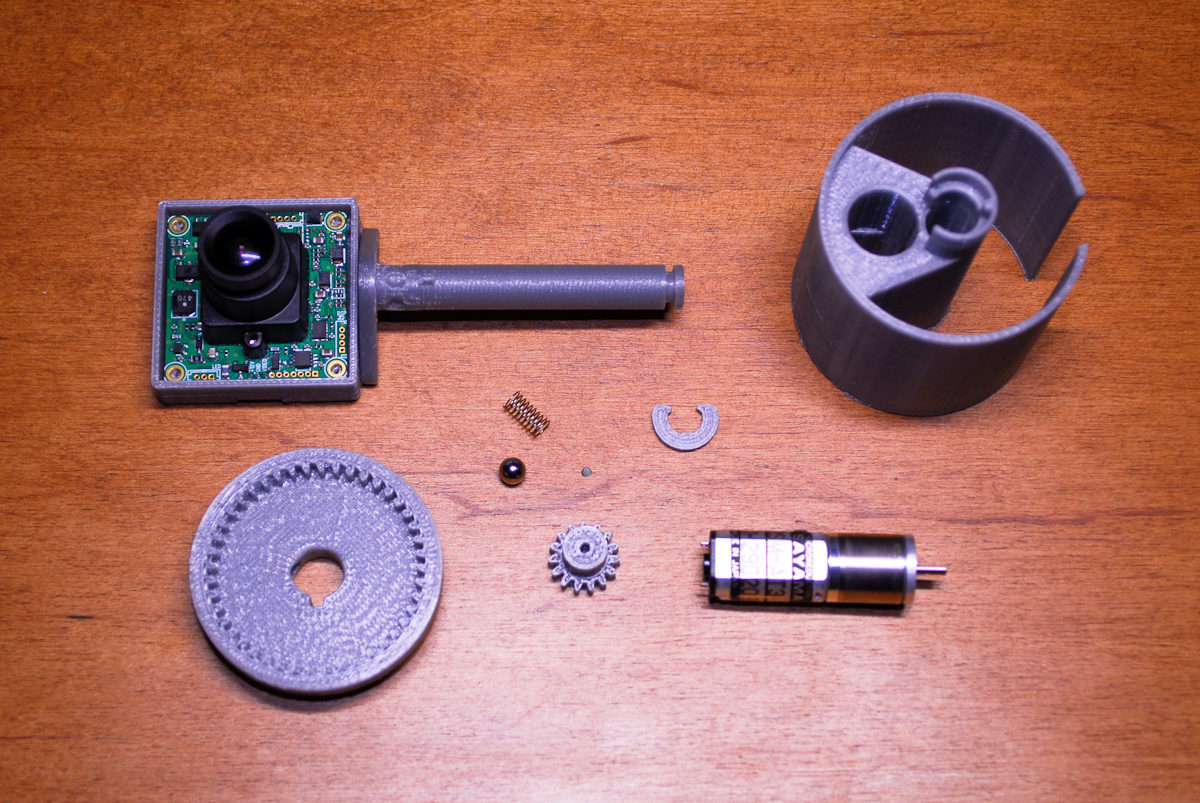

After a little clean up all the parts ready to be assembled.
![Camera Tube 12.jpg](./download/file.php?id=2437&sid=facafe339079ae93ce4160b20c954eeb)
- Camera Tube 12.jpg (751.52 KiB) Viewed 66121 times
Here is the assembled camera mount... so far everything is looking good.
![Camera Tube 13.jpg](./download/file.php?id=2438&sid=facafe339079ae93ce4160b20c954eeb)
- Camera Tube 13.jpg (631.94 KiB) Viewed 66121 times
The back side... the e-clip needs to be a bit smaller so it doesn't hit the motor when the shaft is rotating.
![Camera Tube 14.jpg](./download/file.php?id=2439&sid=facafe339079ae93ce4160b20c954eeb)
- Camera Tube 14.jpg (703.35 KiB) Viewed 66121 times

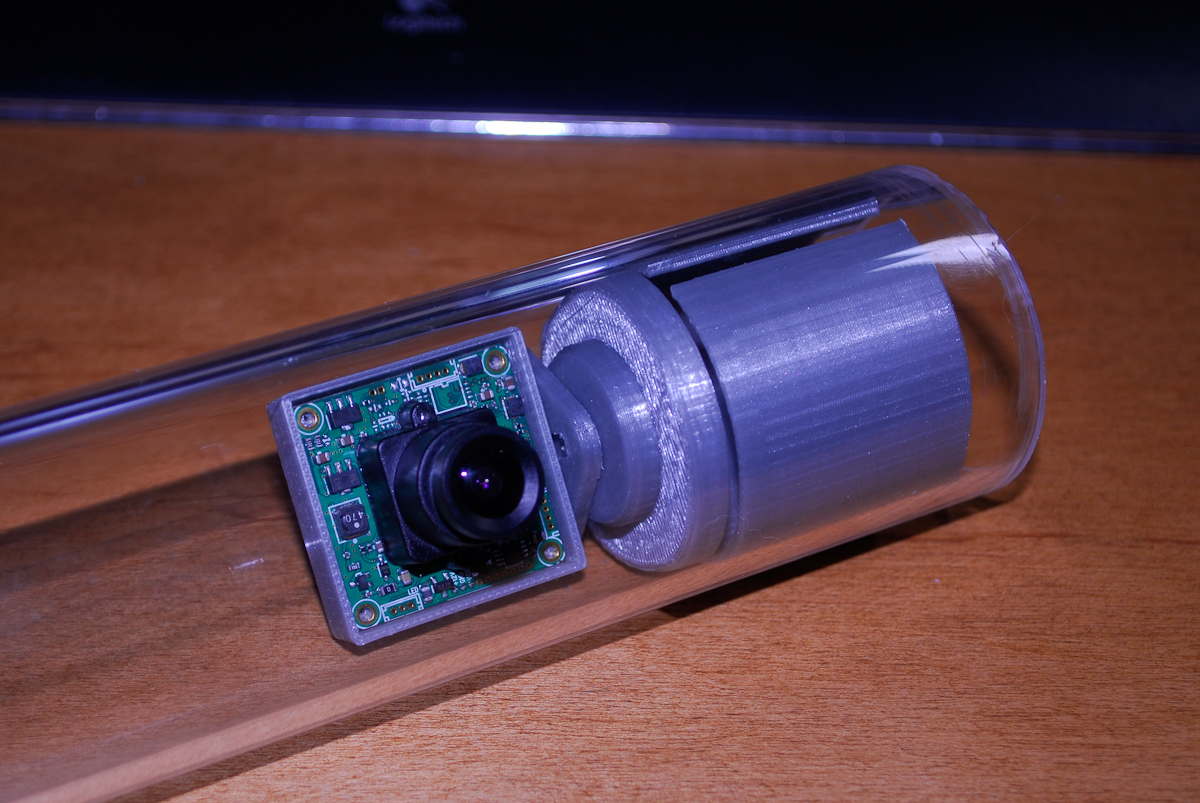

It still rotates a little faster than I would have liked (I'll have to take some video later) maybe I can slow it down with a resistor. It might need a few adjustments but so far it seems like it should work out.
I still need to get some tiny screws to hold the camera to the mount before I can fully test it.
-Steve
