Project: Raspberry PI based ROV.
Description:
This project will make it possible to control a Raspberry PI based ROV from your web browser.
Hardware:
- Raspberry PI (Model B+)
- 2x 5V/7A UBEC 2-8S input (converts 5v-33v to 5V for PI and Servo board)
- Adafruit 16-Channel 12-bit PWM/Servo Driver - I2C interface - PCA9685 (http://www.adafruit.com/product/815)
Supports: Relay's, Servo's and LED's
- Depth/temp sensor (MS5803-14BA, http://store.openrov.com/products/openr ... pth-module)
- 9-axis IMU (MPU-9150, http://store.openrov.com/products/openr ... pth-module)
- USB Webcam / PI Camera (as long as it works with mjpg-streamer)
Software:
https://github.com/Moki38/Moki-ROV.git
If you require the use of I2C, please make sure your PI is configured correctly for this. See (https://learn.adafruit.com/adafruits-ra ... guring-i2c) if you need help with this.
ROV-PI requires a recent nodejs (built and tested with node > 0.10) (http://elinux.org/Node.js_on_RPi) as well as npm and bower for dependency management.
On your I2C en Node.js enabled Raspberry PI, use "git clone https://github.com/Moki38/Moki-ROV.git" to get the software.
Run it using "node server.js"
On your web browser, connect to http://<YOUR_PI_IP>:3000
Raspberry PI based ROV
Raspberry PI based ROV
Last edited by Moki on Feb 9th, 2015, 11:25 am, edited 3 times in total.
Re: Raspberry PI based ROV

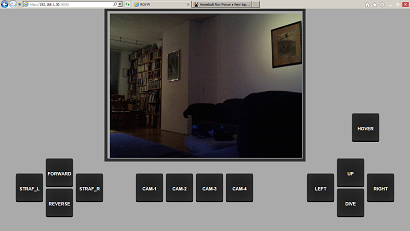

Just a small preview of the screen layout. (Webscreen, using node.js)
- Attachments
-
- Naamloos.png (81.4 KiB) Viewed 20840 times
Re: Raspberry PI based ROV
Hi Moki. The Raspberry Pi and webcam(s) is certainly a more compact and cheaper approach hardware-wise than what I am doing with an EtherTen (effectively a Uno and Ethernet shield combined), IP cam and a network switch. I know that the Pi lacks analog inputs, and apparently interrupts or timing is not as accurate as an Arduino. Attaching an A to D chip is simple enough though, SPI or I2C.
Fryslan76 mentioned a while back that the Model B Pi was better than the Model A regarding video latency. Personally I have had no experience with the Pi, and know very little about it other than just mentioned.
A quick look at what you have posted suggests that the page to be served is uploaded to the Pi? Is it easy to do on-the-fly edits, and how? With the Arduino the SD card had to be removed, written to and reinserted to edit. I was originally using a page stored locally on the PC to get around this, but then had cross-domain security issues (different addresses of PC and Arduino, even with I-Frames).
So with the GUI page and camera being on the Pi, same address, what benefits does node.JS give over plain JavaScript?
Cheers,
Ross
Fryslan76 mentioned a while back that the Model B Pi was better than the Model A regarding video latency. Personally I have had no experience with the Pi, and know very little about it other than just mentioned.
A quick look at what you have posted suggests that the page to be served is uploaded to the Pi? Is it easy to do on-the-fly edits, and how? With the Arduino the SD card had to be removed, written to and reinserted to edit. I was originally using a page stored locally on the PC to get around this, but then had cross-domain security issues (different addresses of PC and Arduino, even with I-Frames).
So with the GUI page and camera being on the Pi, same address, what benefits does node.JS give over plain JavaScript?
Cheers,
Ross
Re: Raspberry PI based ROV
The reason for going for the Raspberry PI, is that I am more of a CLI guy, than a soldering guy.
Its the old controller VS processor argument, I guess.
Yes, the PI isn't real-time... but close enough, to do the job.
From what I understand, is that the USB WEBCAM is doing most of the encoding work already. Using mjpg-streamer, we just pull the data from the USB device and put it on the network. That way, I guess, a single video stream only uses about 10-15% CPU power of the RASPI.
So we don't use the (RAM) filesystem at all, we don't store anything local on the PI.
The idea is that anything you want with the videostream, you do it from the web browser side.
I am not sure I understand the question, Node.js = JavaScript, right?
Its the old controller VS processor argument, I guess.
Yes, the PI isn't real-time... but close enough, to do the job.
From what I understand, is that the USB WEBCAM is doing most of the encoding work already. Using mjpg-streamer, we just pull the data from the USB device and put it on the network. That way, I guess, a single video stream only uses about 10-15% CPU power of the RASPI.
So we don't use the (RAM) filesystem at all, we don't store anything local on the PI.
The idea is that anything you want with the videostream, you do it from the web browser side.
I am not sure I understand the question, Node.js = JavaScript, right?
Re: Raspberry PI based ROV
Thanks. I just Googled "node.js" and I can now see that it allows Javascript to be run on the server side... I guess what I really wanted to know was about the GUI you showed in the above post. The webpage that creates the GUI in the browser is stored on the Pi? So what procedure is used to edit that file. Do you use command line to open the HTML file and edit, then just "re-boot" the Pi? If so, I may end up getting a Pi and webcam , and keep a simple Arduino to do the I/O.
Re: Raspberry PI based ROV
Technically, you are right... just edit and restart.rossrov wrote:Thanks. I just Googled "node.js" and I can now see that it allows Javascript to be run on the server side... I guess what I really wanted to know was about the GUI you showed in the above post. The webpage that creates the GUI in the browser is stored on the Pi? So what procedure is used to edit that file. Do you use command line to open the HTML file and edit, then just "re-boot" the Pi? If so, I may end up getting a Pi and webcam , and keep a simple Arduino to do the I/O.
Ofcourse on the Pi, you log in (using ssh/putty) stop the "node" program, edit the Node/JavaScript program and restart the "node" program.
It would look something like this:
Code: Select all
/root/rov-pi> pkill -9 node
/root/rov-pi> vi server.js
(vi is a unix text editor, if you have no unix skills... try using "nano" instead.)
/root/rov-pi> node server.js
Server is running. (connect using http://192.168.1.30:5000 in your webbrowser)
JavaScript is a programming language to dynamically create the needed HTML.
Node.js (or node for short) is a special webserver, that runs the JavaScript.
In my example, server.js is the JavaScript program, that is run/executed by "node"
Last edited by Moki on Nov 9th, 2014, 3:01 am, edited 2 times in total.
Re: Raspberry PI based ROV
Can you explain to me, why you would need/choice the Arduino for the I/O?rossrov wrote:... keep a simple Arduino to do the I/O.
The Raspberry Pi, has an I2C bus. Connect all the I/O boards you need that way, keeps things simple, only 1 hardware platform to manage. (for me at least, as i have no Arduino skills/exp).
Re: Raspberry PI based ROV
The Video capture part is also taken care of (for now )
Found this free/opensource software package, called: CamStudio (http://sourceforge.net/projects/camstudio)
It allows you to capture, your screen,window or a boxed area on your PC screen.
Found this free/opensource software package, called: CamStudio (http://sourceforge.net/projects/camstudio)
It allows you to capture, your screen,window or a boxed area on your PC screen.
Re: Raspberry PI based ROV
That helps, thanks. A good thread too. Saved alot of Googling or actually buying a Pi and investing some time. The Pi may have been a better path than the Arduino considering that my ROV project has remained network-based. As you may have guessed I'm better with hardware/microcontrollers than operating systems, and this has put me off the Pi so far.
The reason to include the Arduino (as an I2C slave) is that it can do the A to D sampling at a fixed rate, and fast enough, important for one aspect of the project. At the same time it can generate the PWM. If not for the A to D timing requirements, then certainly using hardware A to D and PWM boards would be much better. Yes, messy having two completely different computer systems and programming environments to deal with.
The reason to include the Arduino (as an I2C slave) is that it can do the A to D sampling at a fixed rate, and fast enough, important for one aspect of the project. At the same time it can generate the PWM. If not for the A to D timing requirements, then certainly using hardware A to D and PWM boards would be much better. Yes, messy having two completely different computer systems and programming environments to deal with.
Re: Raspberry PI based ROV
Rossrov, sounds like a great project yer having... be sure to keep us posted on it.
For me... I upgraded the software modules to the latest and greatest versions.... and something broke
Nothing major (I hope) just needs a little tweaking and tinkering.
When I got something that looks nice and stable, ill post the code on GitHub.
For me... I upgraded the software modules to the latest and greatest versions.... and something broke
Nothing major (I hope) just needs a little tweaking and tinkering.
When I got something that looks nice and stable, ill post the code on GitHub.
