Pretty cool, it looks like it worked great and the video is awesome. It's cool that had had some interesting things to see and recover but it's so disappointing to see garbage like that underwater. Least you recovered some of it.
We did get a fair amount of junk out, just wished i'd had it finished sooner before the blue/green algae started to bloom, roll on the colder weather!
thanks for the kind comments, this time next year i'll hopefully have the mk2 up and running too, just writing the arduino code for that now (learning on the fly!), and acquiring as many atmospheric housings as possible!

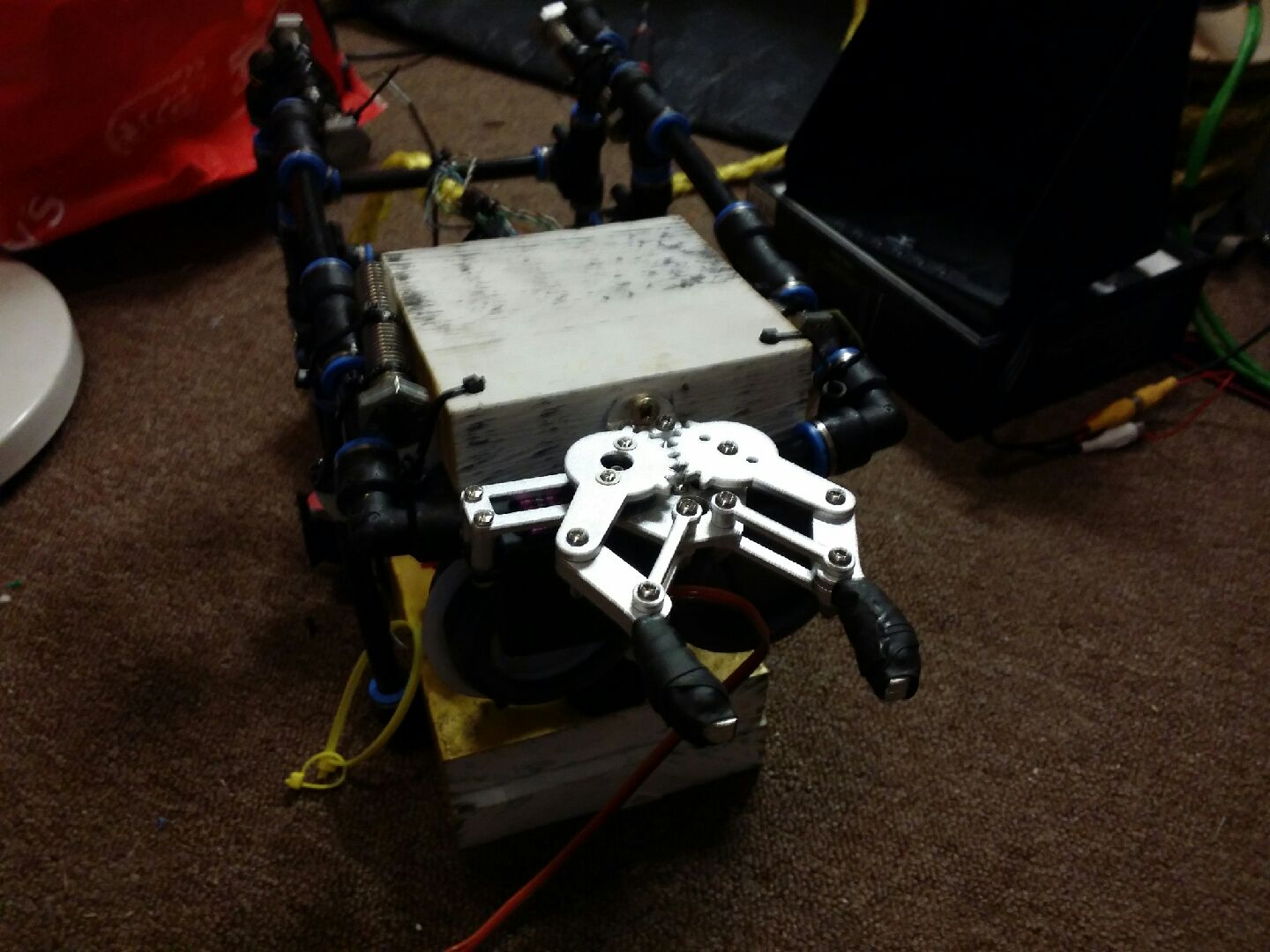

I had bought a little grabber with a view to putting it on my mk2 ROV. but it was a little weedy. .....
So onto the mk1 it goes!
It's mounted on a block of buoyancy that is enough to make the grabber assembly slightly positively buoyant.
I've gutted the servo, so it's basically a tiny reduction gearbox now, and the servo can now run wet, added a micro esc to my topside controller to control opening and closing, then weighted my output accordingly.
Threw it all together and it works, need to now wire it into a pair of my spare conductors in my tether, re trim the whole thing and away we go!
Also running 12v through my escs as opposed to 8.4, should be fine as my electronics are rated for a lot more than they are being used for!
Also want to tidy my topside control box a little more add it's not as tidy as I'd like.
Very much looking forward to my next dive!
Attachments
the 3rd person view is a very cheap gopro/sj4000 copy, it seems to do the trick!
A little mod was carried out tonight as my ROV light was just not cutting the mustard!
So making use of some parts i'd ordered for my next ROV, i mounted 3x 3w LED's on thermoplastic as a mount. i don't intend on flying in seawater, so they are mounted wet at the moment. I've got some liquid electrical tape en route, which i'll use to cover up the contacts and get a bit more life out of the LED's
These LED's were connected in series, as they have a max forward voltage of 4.5v, 3 led's in series should be able to handle my 3s lipo power supply, which is max 12.6v.
I'll be losing around 0.6v @ 500ma at that voltage so i was certain the LED's would not be over driven. they do get quite warm after about 2 mins in air, but in water they should remain cold.
Ok so first dive with my new lighting........ very impressed!
If you compare the videos from my first time at the quarry, and today, you can see a massive difference.
My gopro picks up a bit of back-scatter, but my FPV cam seems to be unaffected?
the videos, the before video was a very sunny day, though i had to stay out of the shadows or visibility was horrible, the after video is today, a very dull day, and i could explore anywhere i wanted to
