My Arduino is in the rov, controlled at the moment from a pc. using usb over ethernet. I have ESC controllers driving brushless motors. Use the servo library for to drive the ESC's

I've driven the second one with an arduino, works quite well

If I remember correctly you scrape away some of the white coating and you also need a special lo temp solder

NiCd batteries onboard at moment, using computer for control at the moment but I'm installing a Wii Nunchuck to use as a controller.

On board batteries. Controller is an Arduino, using USB over cat 5 for cabling, can use up to 150 feet away.

Hi Rob

I copied your motor design from the RC forum
They certainly move some water, I need to do more testing as I have only done a quick run so far. Trying to get the time is the main thing.

Martin

I use motor controller with pwm to control the motors, I'm currently working on integrating a digital compass and on screen display, have both working individually but now need to integrate them together.

Pictures posted

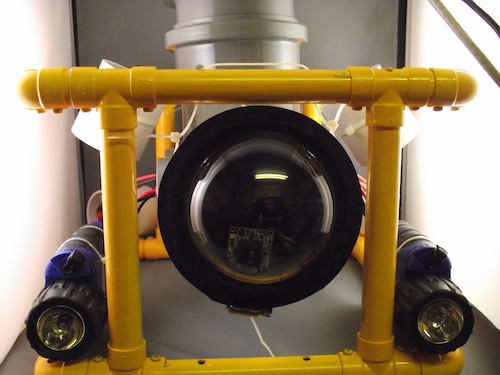

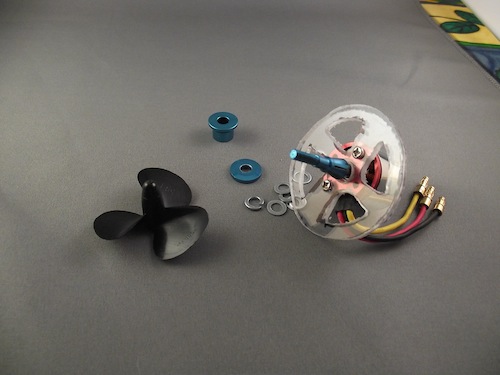

Dunk test Camera Frame Harbour test Hull Motor Motor Assembled ROV Water maiden voyage

No problem
I work with Arduino a lot, my ROV uses Arduino for all it's control
